AutomotiveArmaguard

High Pressure Equipments

Armaguard offers an variety of equipment ranging from air driven-electric-hydraulic plural component high pressure machines. After we help you determine what equipment is best for you, based off the information provided. We give you a good, better, best option for your business needs.

You will likely need

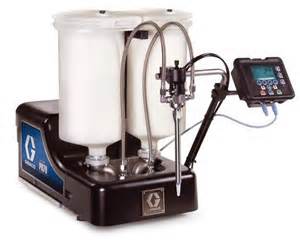

Graco Reactor E-10 - Coating-Foam-Joint Fill Proportioner
Download Manual

Graco's Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.

Graco E-XP1 - Coating Proportioner
Download Manual

Graco's Reactor E-XP1 is a state-of-the-art proportioning system that gives superior performance, control and accuracy. It is designed to apply Polyurethane, Polyurethane Hybrid, Polyurea, and other fast-set materials that require accurate temperatures and pressures necessary to achieve ultimate results.

Graco E-XP2 - Coating Proportioner
Download Manual

Graco's Reactor E-XP2 is a state-of-the-art proportioning system that gives superior performance, control and accuracy. It is designed to apply Polyurethane, Polyurethane Hybrid, Polyurea, and other fast-set materials that require accurate temperatures and pressures necessary to achieve ultimate results.

Graco H-XP2 - Coating Proportioner
Download Manual

Graco's Reactor H-XP2-15.3kw is a lightweight, easy-to-use hydraulic unit that combine the horizontal Gusmer pump line and Graco technology, including digital controls and system diagnostics. These sprayers are ideal for plural-component polyurethane spray foam, tank and pipe coating, in-plant OEM, adhesives and caulk, rim and band joist applications. Reactor H-XP2-15.3kw...reliable performance and industry-proven technology from Graco|Gusmer.

Graco H-XP3 - Coating Proportioner
Download Manual

Graco's Reactor is a state-of-the-art proportioning system that gives superior performance, control and accuracy. It is designed to apply polyurea, foam and other fast-set materials that require accurate temperatures and pressures necessary to achieve ultimate results.

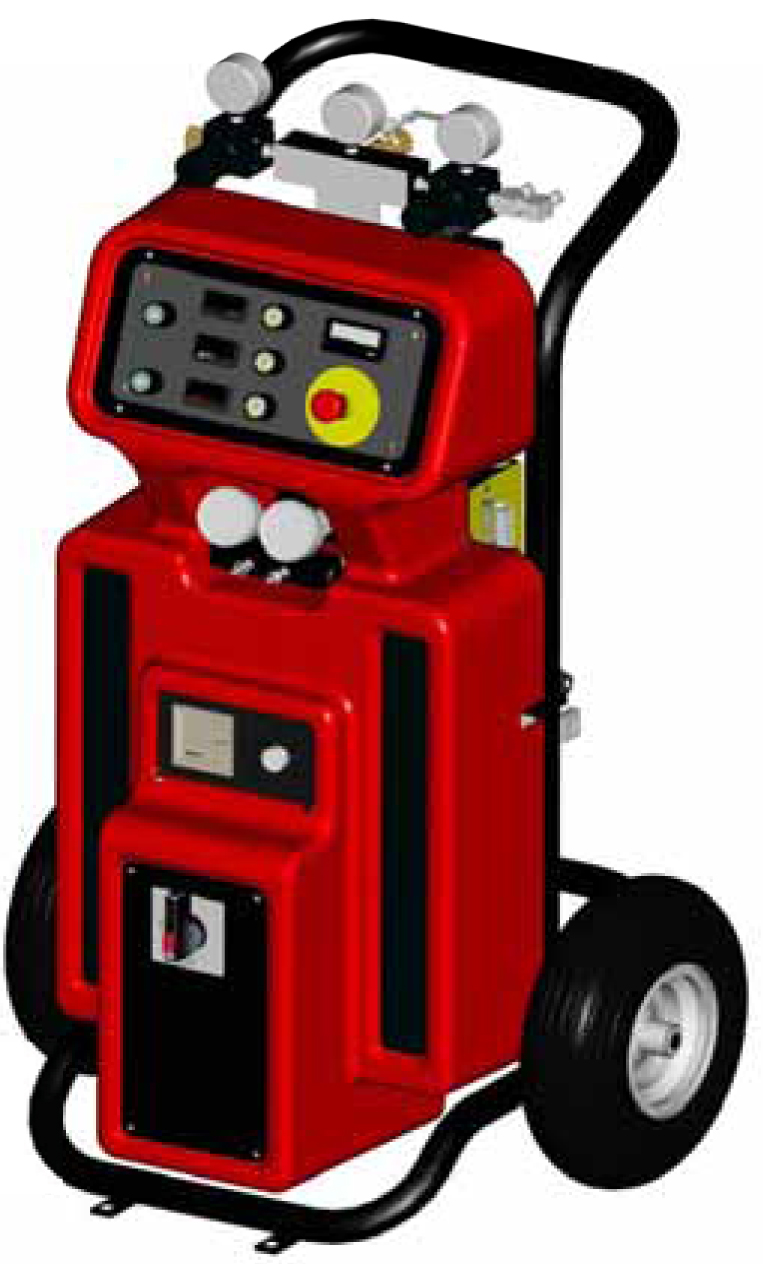

AD 6000 / AD 12000 - Coating Proportioner
Download AD-6000 Manual Download AD-12000 Manual
Two Component Modified Polyurea Protective Coating DESCRIPTION

Coat A HP / Coat B HP is a two component, 1:1, 100% solids, fast set, liquid applied, modified polyurea liner system for metal, concrete, fiberglass and wood surfaces.

FEATURES

Seamless

High Build

Tough and Elastomeric

Quick Drying

Chemical Resistance

Low temperature Flexibility

Abrasion and Impact Resistant

COLOR

Neutral or Black. Custom colors are available upon request.

TYPICAL USES

Truck Bed Surfaces

Containment Areas

Cargo liners

Cargo Holds

Utility Vehicles

Horse Trailers

Industrial Floorings

Waterproof Decking

Boat linings

Walkways

Encapsulation of Fiberglass and Polystyrene Foams

PACKAGING

10 gallon kit: 5 gallons (47 lbs. net) Side-A and 5 gallons (43 lbs. net) Side-B. 100 gallon kit: Side-A 50 gallons (473 lbs. net) and Side-B 50 gallons (neutral: 433 lbs. net, black: 435 lbs. net)

COVERAGE

Coat A HP / Coat B HP may be applied at any rate to achieve desired thickness. Theoretical coverage per gallon is 1600 sq. ft. at 1 mil.

MIXING

Coat A HP / Coat B HP may not be diluted under any circumstances. Thoroughly mix Coat B HP Side-B Base material with air driven power equipment until a homogeneous mixture and color is obtained.
Side-B base material must be thoroughly agitated until a homogenous mixture is obtained. Do not allow air to be incorporated into the product. Total suspension must be achieved. Side-A Isocyanate requires no mixing.

APPLICATION

Both Side-A and Side-B materials should be preconditioned at 75-80°F before application. Coat A HP / Coat B HP should be applied using a plural component, heated, high pressure 1:1 spray mixing equipment like Graco?s Hydra Cat, Gusmer or other equivalent machine may be used.
Both Side-A and Side-B materials should be sprayed at temperatures above 150°F. Adequate pressure and temperature should be maintained at all times.
